[DESCRIPTION]

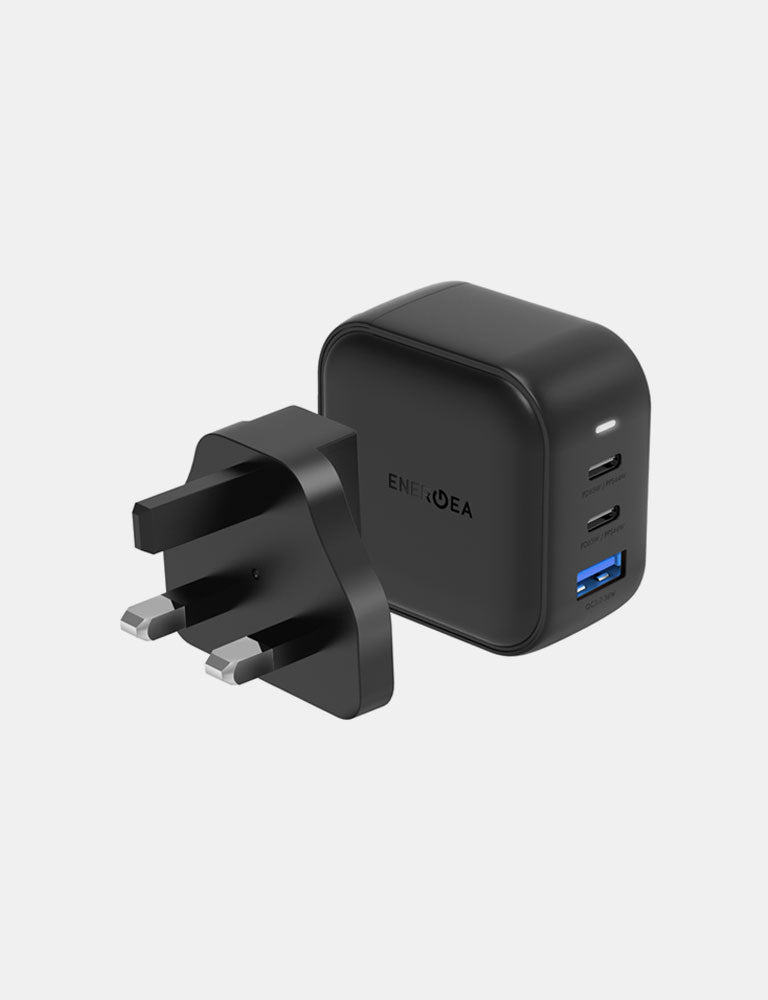

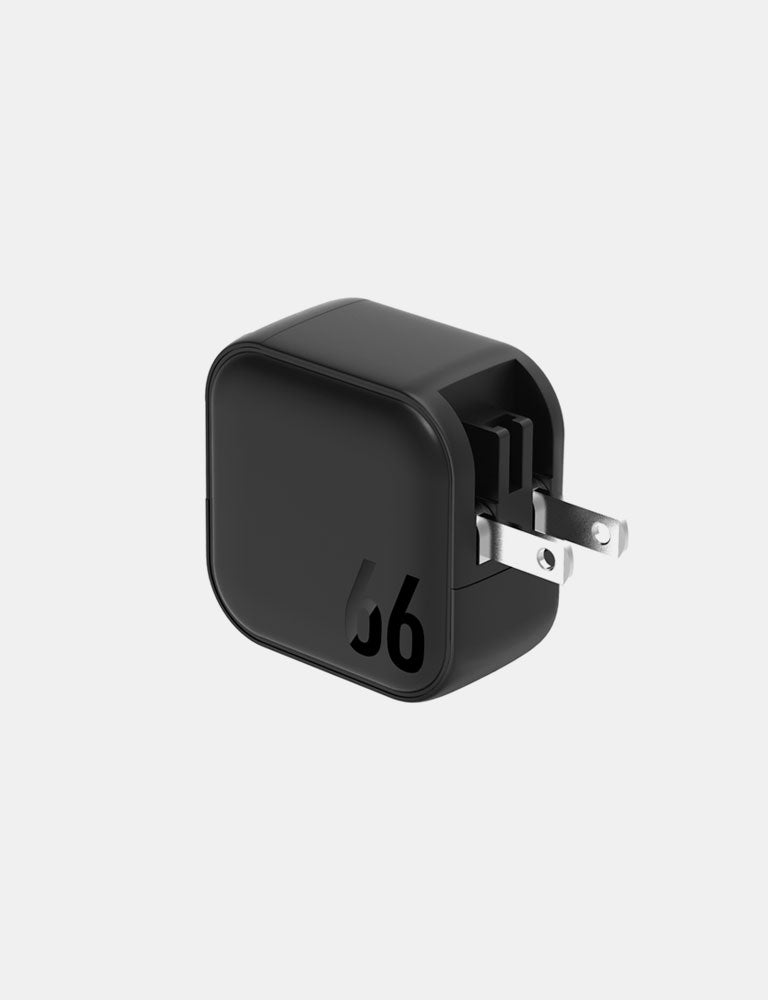

World smallest 66W wall charger. The upgraded GaN technology allows for a noticeably smaller design compared to the original stock components. In addition to protecting against overheating, overcurrent, voltage load, and short circuits, the 66W GaN charger is designed with preventive safety features.
Features
- Ultra-compact design, 60% smaller in size
- Uses GaN Technology for higher power efficiency and cooler operation
- Universal fast charge for Apple, Samsung, Huawei and Oppo, etc
- Support Power Delivery 66W, PPS 44W and QC3.0 36W
- Works flawlessly with all mobile USB-C devices, laptops and tablets
- Charge duo MacBooks at the same time
- Charge iPhone 8 and above with 50% power in 30 mins
- Higher power efficiency and cooler operation
- Over-voltage, over-current, short-circuitry and leakage protection
Design
- Input: AC 100-240V 50-60Hz 1.7A (Max)
- USB-C1/C2 Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=3.25A (PD 65W Max)
Programmable Power Supply: 3.3V-11V=4A (PPS44W) - USB-A Output: 5V=3A, 9V=3A, 12V=3A, 20V=1.8A (QC3.0 36W Max)
- Charging configurations:
C1 / C2 Output: PD65W
USB-A Output: 36W Max (QC3.0)
C1+C2 Output: PD30W + PD30W
C1+USB-A Output: PD45W (C1) + 18W (QC3.0)
C1+C2+USB-A Output: PD30W (C1) + PD18W (C2) + 18W (QC3.0)
- Total power: 66W
- 53 x 53 x 30.7mm
- 110g
[ENDDESCRIPTION] [INFORMATION]
Power Delivery
iPhone 15 series | iPhone 14 series | iPhone 13 series | iPhone 12 series | iPhone SE | iPhone 11 series | XS | XS Max | XR | X | 8 Plus | 8 | iPad Pro 2018 | Samsung Galaxy S10 | S10+ | S10e | Google Pixel 5 | Pixel 4a | Nexus 6P
Quick Charge 3.0
LG G5 | G6 | V20 | V30 | Nokia 8 | 9 | RedMi Mi5 | Mi6 | MiMax 2 | MiMax 3 | MiMix | MiMix 2 | Note 5 | Samsung Galaxy Note 8 | 9 | 10 | S22 | s21 | S10 | S9 | S8 | S7 | S7 Edge | Sony Xperia XZ | XZ1
[ENDINFORMATION] [FAQ]
Can both USB-C ports support fast charging when use simultaneously?
Fast charging up to 30W is supported when both USB-C ports are in use. For 65W, you can only use one port at a time for the fast charging to work.
I cannot achieve fast charging when using both USB-A ports?
Please ensure that the USB-C port is not in use in order to achieve full 36W for the USB-A port.
[ENDFAQ]
